Product overview

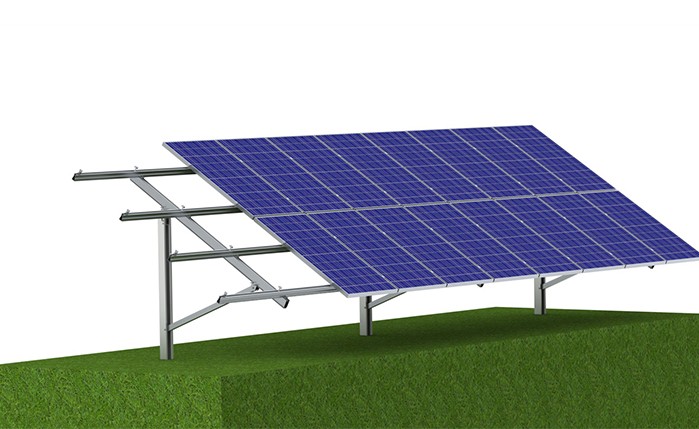

YZ Pile Ground System is applied for large commercial and utility PV systems on non-sandy ground, suitable for both framed and frameless module installation.
In YZ Pile Ground System, Open Post can be piled into the ground quickly 1-2 meters by pile machine, and then easily mounting the pre-assembled Al-Beam structure, YZ Rail with clamps.
Our mission is to simplify your installation and ensure the structure safety. YZ Solar, your best choice.
| Install Site | Open Field, non Sandy | Rail Material | Aluminum Alloy |
| Angle of Inclination | 0~45° | Post Material | Hot-dip Galvanized Stell Q235 |
| Structure Height | 3m Less | Finishing | Anodized |
| Max Wind Speed | up to 60m/s | Adjustability | Post Height Deviation:10mm |
| Snow Load | 1.4KN/㎡ | Post Angle Deviation:2° | |
| Pile Driving Depth | 1000-2000mm | Post Verticality Deviation:2° |
